Create an alluvial plot visualisation from a data frame or a <summarised_result> object.

Create an alluvial plot visualisation from a data frame or a <summarised_result> object.

Usage

alluvialPlot(result, x, y, colour = x, facet = NULL, style = NULL, type = NULL)

Arguments

result: A <summarised_result> object.
x: A character vector of column names to use as alluvial axes, in order from left to right. Must contain at least 2 elements.
y: Column or estimate name that is used as y variable.
colour: Columns to use to determine the colours.
facet: Variables to facet by, a formula can be provided to specify which variables should be used as rows and which ones as columns.
style: Visual theme to apply. Character, or NULL. If a character, this may be either the name of a built-in style (see plotStyle()), or a path to a .yml file that defines a custom style. If NULL, the function will use the explicit default style, unless a global style option is set (see setGlobalPlotOptions()), or a _brand.yml file is present (in that order). Refer to the package vignette on styles to learn more.
type: Character string indicating the output plot format. See plotType() for the list of supported plot types. If type = NULL, the function will use the global setting defined via setGlobalPlotOptions() (if available); otherwise, a standard ggplot2 plot is produced by default.

Value

A plot object.

Examples

result <- dplyr::tibble(
  treatment_1 = c("A", "A", "A", "B", "B", "B", "C", "C"),
  treatment_2 = c("A", "A", "B", "A", "B", "B", "B", "C"),
  treatment_3 = c("A", "B", "B", "A", "A", "B", "B", "C"),
  count       = c(22, 3, 5, 7, 3, 17, 4, 12)
)

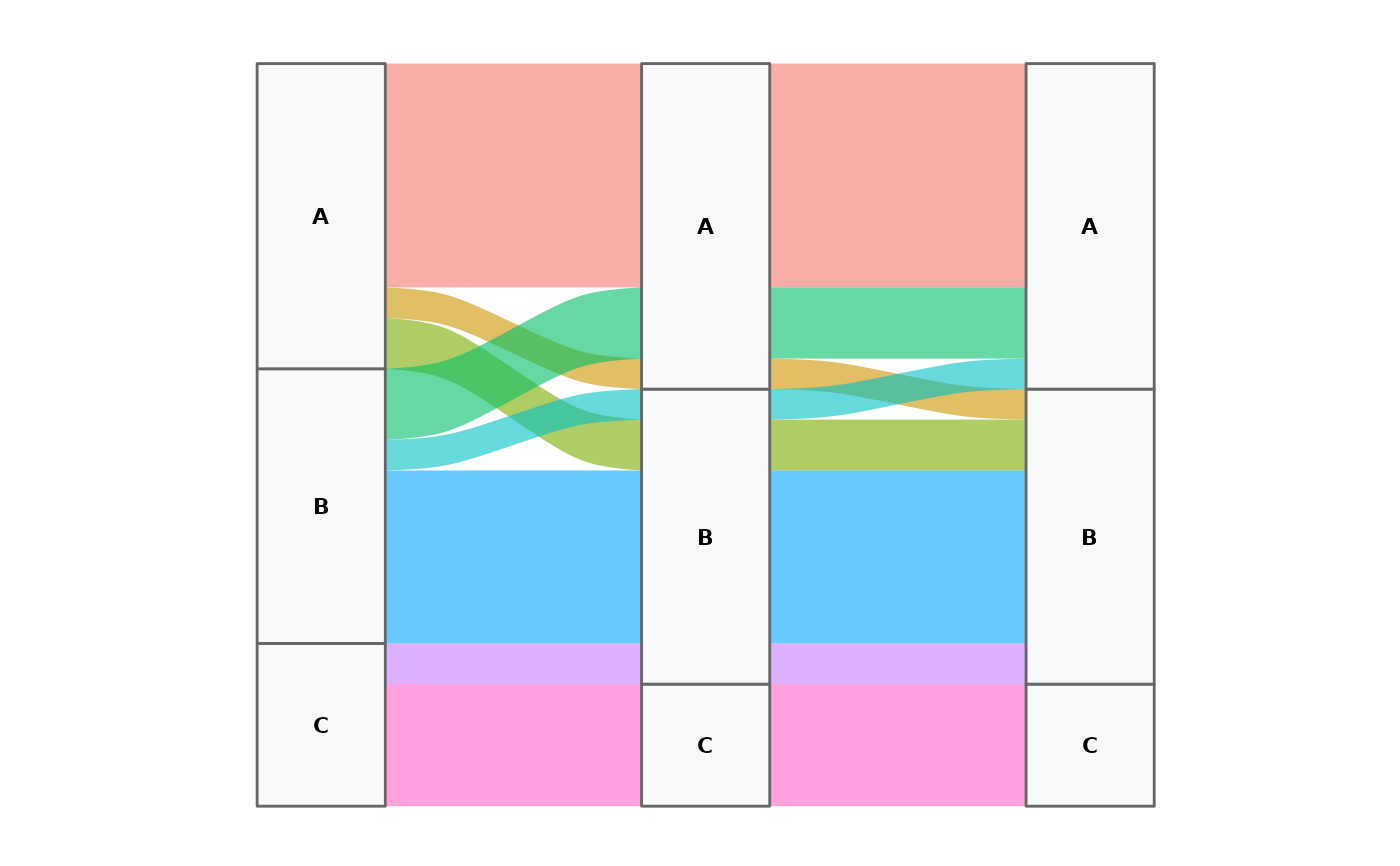

# basic alluvial plot with 3 axes
alluvialPlot(
  result = result,
  x = c("treatment_1", "treatment_2", "treatment_3"),
  y = "count"
)
#> Warning: Some strata appear at multiple axes.
#> Warning: Some strata appear at multiple axes.
#> Warning: Ignoring empty aesthetic: `family`.

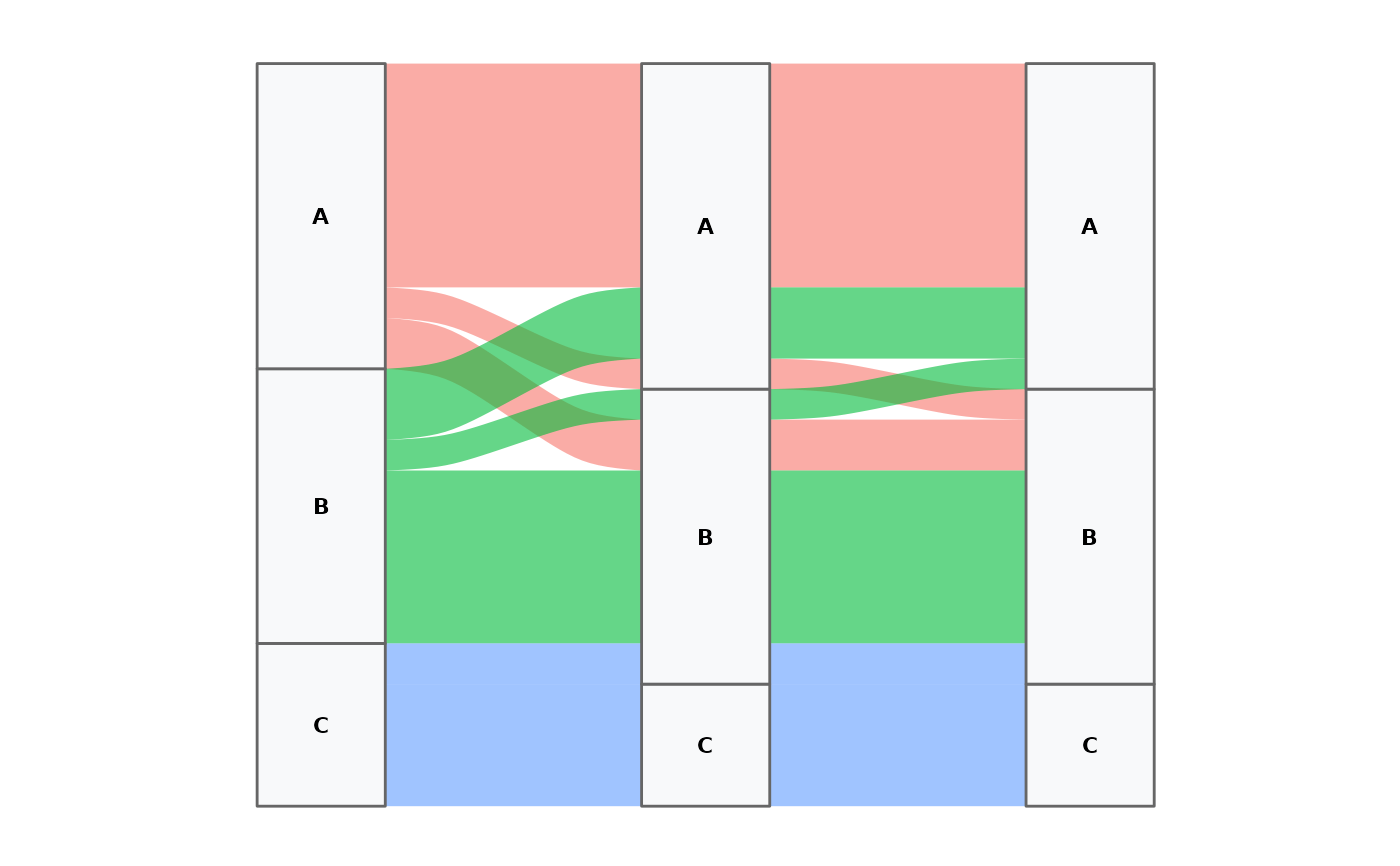

# colour by first axis
alluvialPlot(
  result = result,
  x = c("treatment_1", "treatment_2", "treatment_3"),
  y = "count",
  colour = "treatment_1"
)
#> Warning: Some strata appear at multiple axes.
#> Warning: Some strata appear at multiple axes.
#> Warning: Ignoring empty aesthetic: `family`.

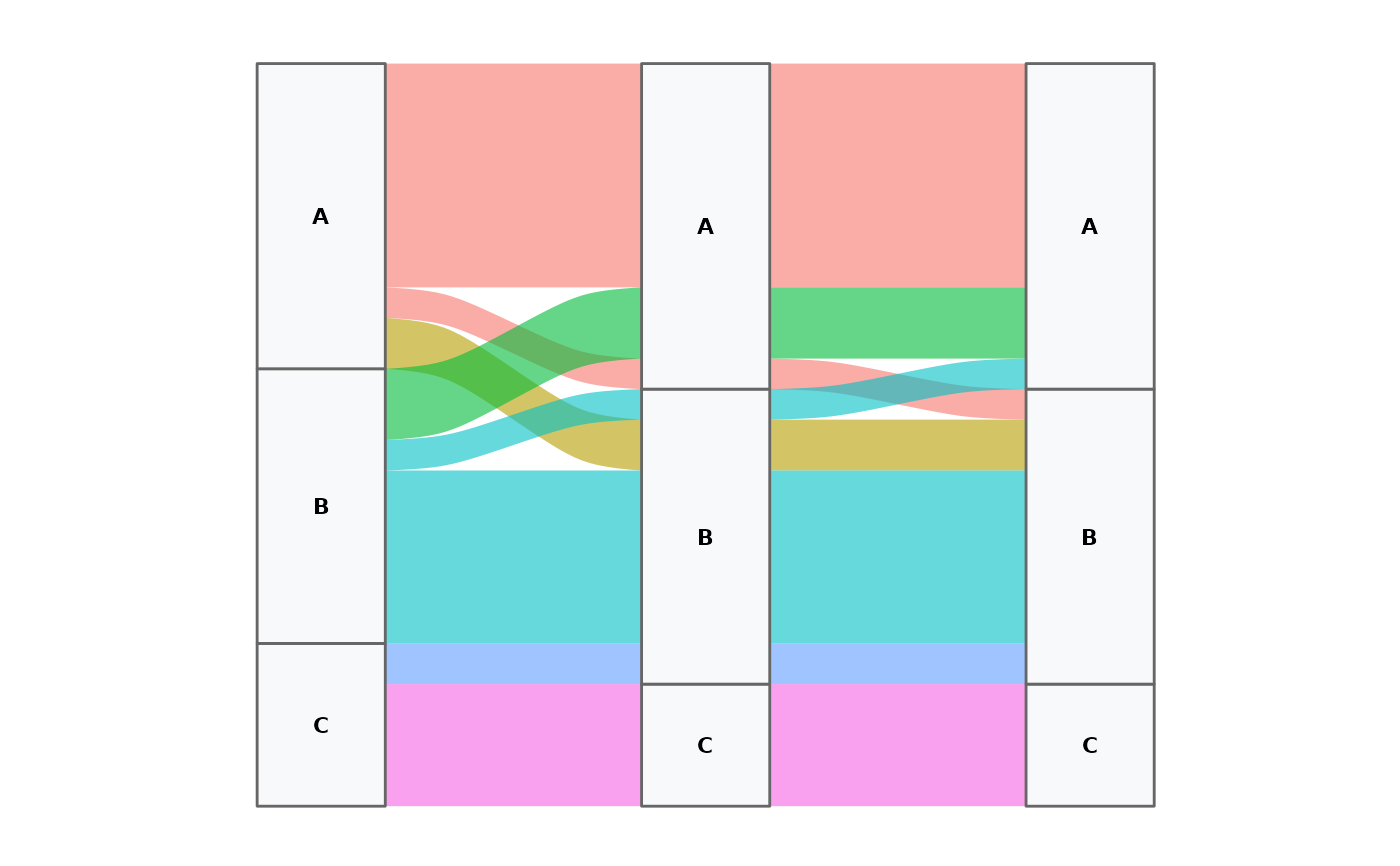

# colour by multiple variables
alluvialPlot(
  result = result,
  x = c("treatment_1", "treatment_2", "treatment_3"),
  y = "count",
  colour = c("treatment_1", "treatment_2")
)
#> Warning: Some strata appear at multiple axes.
#> Warning: Some strata appear at multiple axes.
#> Warning: Ignoring empty aesthetic: `family`.
