Using modules in a shiny app

Introduction

In this vignette we will discuss how to use various shiny modules in a shiny app. The shiny app exists out of two components: the UI, and the server:

server <- function(input, output, session) {

}

UI <- shiny::fluidPage(

)

if (interactive()) {
  shiny::shinyApp(ui = UI, server = server)
}

These two components will be the foundation of our shiny app.

Adding a module

Let’s add a table containing the iris data. First we need to create a Table module:

library(DarwinShinyModules)

table <- Table$new(data = iris)

table
#> <Table>
#>   Inherits from: <ShinyModule>
#>   Public:
#>     bindings: active binding
#>     clone: function (deep = FALSE)
#>     data: active binding
#>     filter: active binding
#>     initialize: function (data, title = "Table", options = list(scrollX = TRUE),
#>     instanceId: active binding
#>     moduleId: active binding
#>     moduleName: active binding
#>     namespace: active binding
#>     options: active binding
#>     parentNamespace: active binding
#>     reactiveValues: active binding
#>     server: function (input, output, session)
#>     title: active binding
#>     UI: function ()
#>     validate: function ()
#>   Private:
#>     .bindings: reactivevalues
#>     .data: data.frame
#>     .filter: top
#>     .init: function ()
#>     .instanceId: SwlKLU5Ed6ieYxombQ_X
#>     .moduleId: Table-SwlKLU5Ed6ieYxombQ_X
#>     .moduleName: Table
#>     .namespace: Table-SwlKLU5Ed6ieYxombQ_X
#>     .options: list
#>     .parentNamespace: NULL
#>     .reactiveValues: NULL
#>     .server: function (input, output, session)
#>     .title: Table
#>     .UI: function ()
#>     checkMethodOverrides: function ()
#>     dlContent: function (file)
#>     dlFilename: function ()
#>     downloader: function (output)
#>     finalize: function ()
#>     makeInstanceId: function (n = 20)
#>     renderTable: function (output)
#>     setBindings: function (input)

The table module is an R6 class and contains various public and private fields and methods. Some of these are specific to the Table module. But most of them are present in all DarwinShinyModule modules. All modules have a server() and UI() method. These methods are used make the shiny app function, and may be used on their own by shiny::shinyApp(). This makes each module essentially a tiny stand-alone shiny app.

To integrate our module in our own shiny app, all we have to do is add the UI() and server() method calls to our own shiny app:

server <- function(input, output, session) {
  table$server(input, output, session)
}

UI <- shiny::fluidPage(
  table$UI()
)

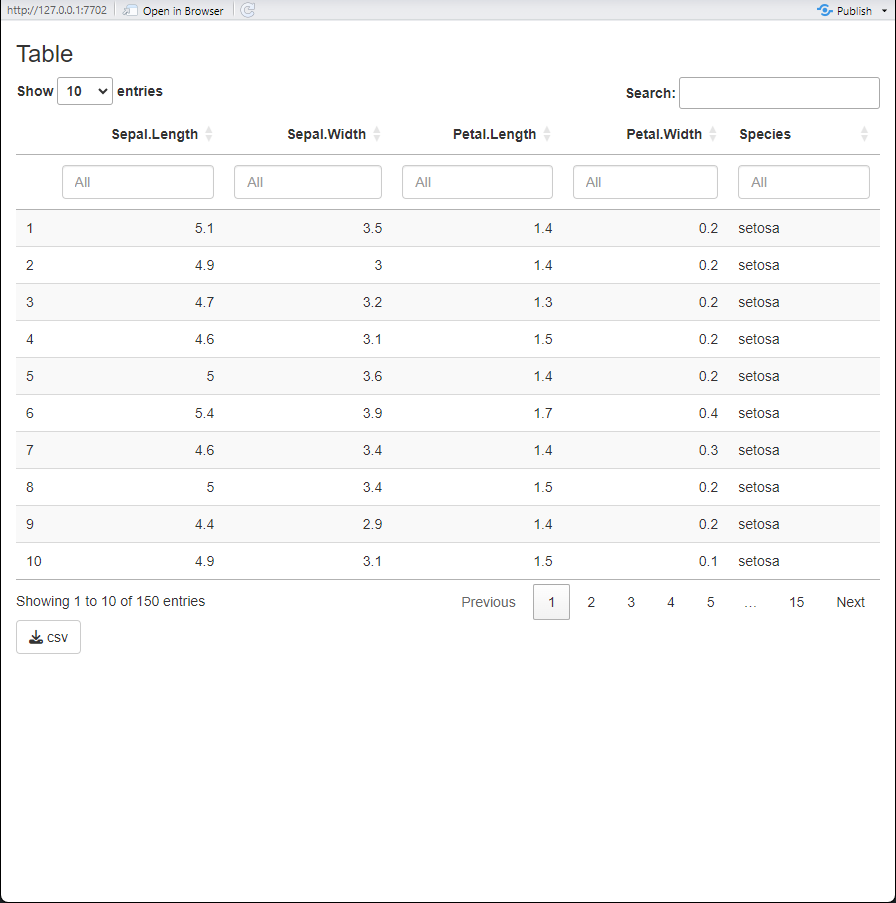

shiny::shinyApp(ui = UI, server = server)

Shiny applications not supported in static R Markdown documents

We have some arguments to customize our table, title, options, filter. The options and filter arguments are DT arguments to add extra options, or to have control over the filtering.

table <- Table$new(
  data = iris,
  title = "Iris Dataset",
  options = list(pageLength = 5),
  filter = "none"
)

server <- function(input, output, session) {
  table$server(input, output, session)
}

UI <- shiny::fluidPage(
  table$UI()
)

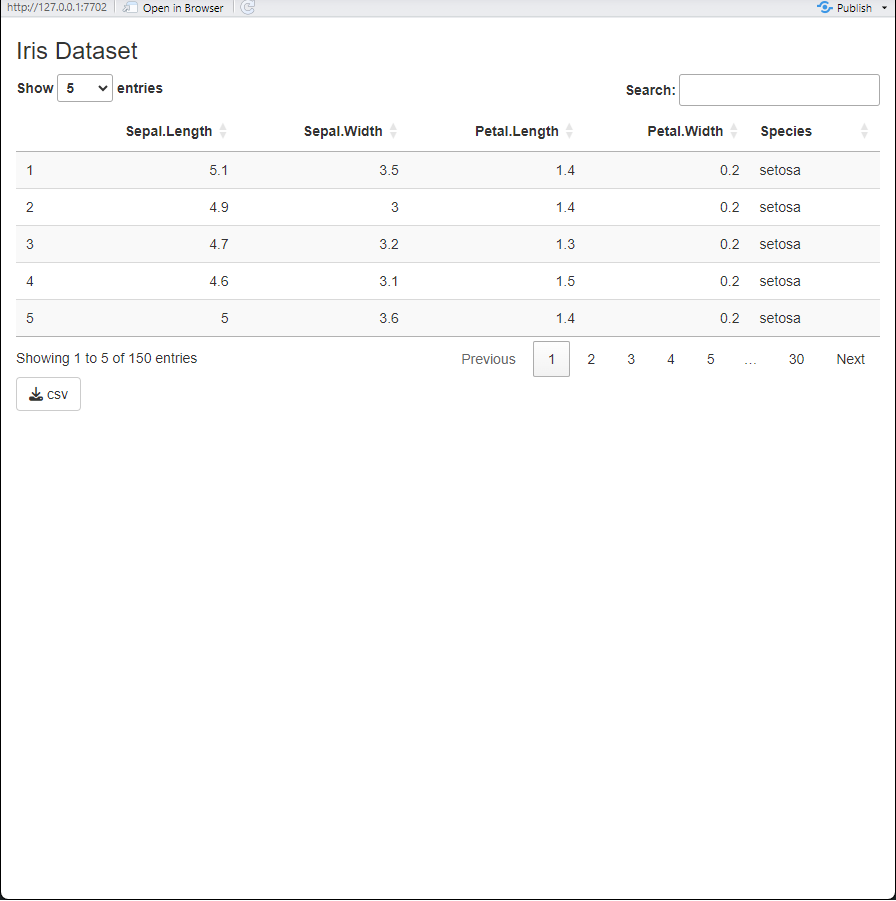

shiny::shinyApp(ui = UI, server = server)

Shiny applications not supported in static R Markdown documents

Maybe we don’t like the standard filtering that DT provides, let’s add an InputPanel module. The InputPanel module requires a named list of xInput() functions and a named list of their corresponding arguments. The upside of this is, that if you may add an input function from another package, without breaking compatibility.

inputPanel <- InputPanel$new(
  funs = list(
    inputSpecies = shiny::selectInput
  ),
  args = list(
    inputSpecies = list(
      inputId = "inputSpecies",
      label = "Select Species",
      choices = unique(iris$Species),
      selected = unique(iris$Species)[1]
    )
  )
)

inputPanel
#> <InputPanel>
#>   Inherits from: <ShinyModule>
#>   Public:
#>     args: active binding
#>     clone: function (deep = FALSE)
#>     funs: active binding
#>     initialize: function (funs, args)
#>     inputValues: active binding
#>     instanceId: active binding
#>     moduleId: active binding
#>     moduleName: active binding
#>     namespace: active binding
#>     parentNamespace: active binding
#>     reactiveValues: active binding
#>     server: function (input, output, session)
#>     UI: function ()
#>     validate: function ()
#>   Private:
#>     .args: list
#>     .funs: list
#>     .init: function ()
#>     .instanceId: Z4vEafHYT6yUXKhGFRsB
#>     .moduleId: InputPanel-Z4vEafHYT6yUXKhGFRsB
#>     .moduleName: InputPanel
#>     .namespace: InputPanel-Z4vEafHYT6yUXKhGFRsB
#>     .parentNamespace: NULL
#>     .reactiveValues: NULL
#>     .server: function (input, output, session)
#>     .UI: function ()
#>     checkMethodOverrides: function ()
#>     finalize: function ()
#>     makeInstanceId: function (n = 20)
#>     updateIds: function ()

Before we add our InputPanel let’s see what it contains. It again has a server() and UI() method, but it now also has a inputValues active binding. inputValues is a reactive environment, where the input is stored from all the added xInput() functions. The reference for each value is the specified inputId in the args arguments list when creating a new InputPanel module.

Again we can add the server() and UI() method calls to our shiny app. Note that the UI is rendered first come, first serve:

server <- function(input, output, session) {
  table$server(input, output, session)
  inputPanel$server(input, output, session)
}

UI <- shiny::fluidPage(
  inputPanel$UI(),
  table$UI()
)

shiny::shinyApp(ui = UI, server = server)

Shiny applications not supported in static R Markdown documents

Initially the selection input shows the correct thing, but doesn’t actually filter the data in the table. We have to update the data in the Table module.

server <- function(input, output, session) {
  table$server(input, output, session)
  inputPanel$server(input, output, session)

  # The `inputSpecies` reference is availible in the reactive `inputValues`
  # envrionment in the `inputPanel`.
  shiny::observeEvent(inputPanel$inputValues$inputSpecies, {
    # We update the data in the `table` module
    table$data <- iris %>%
      dplyr::filter(.data$Species == inputPanel$inputValues$inputSpecies)
  })
}

UI <- shiny::fluidPage(
  inputPanel$UI(),
  table$UI()
)

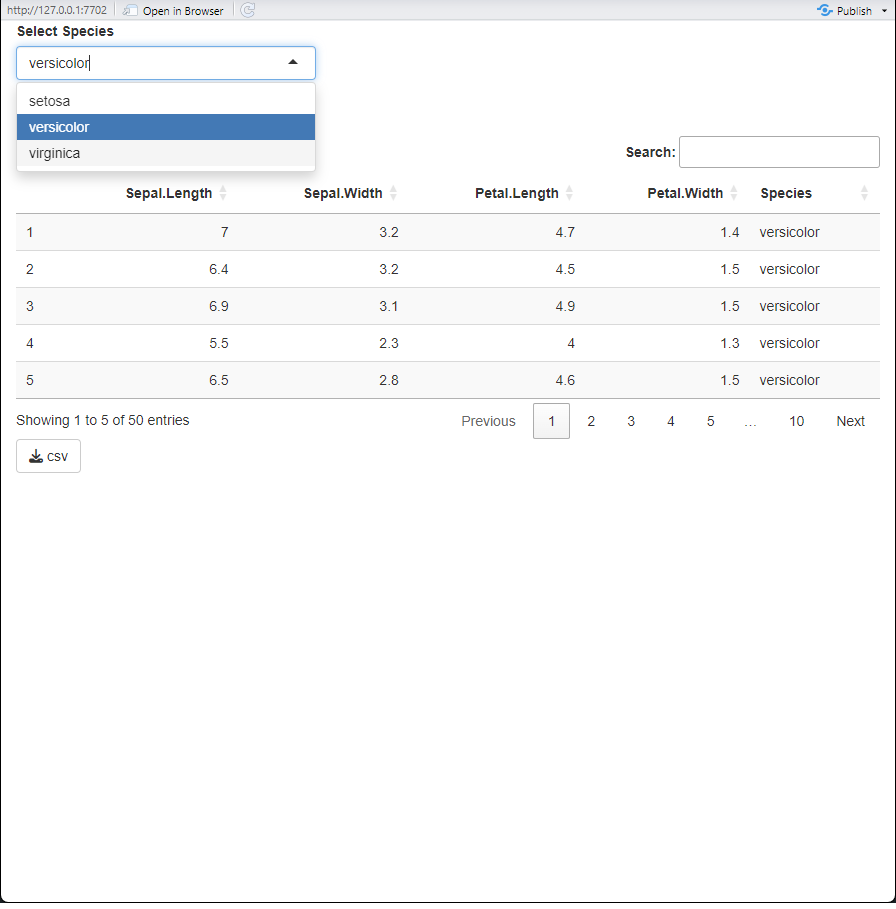

shiny::shinyApp(ui = UI, server = server)

Shiny applications not supported in static R Markdown documents

With some minor overhead we can make two modules communicate data between one another.

The Bridge Module

The Bridge module is a type of module that contains other modules, and “bridges” them together. We can use the code in the previous example, and implement it as a Bridge instead. This has the upside that we can nest two or more modules together, and package them up in a new module, which will then behave as any other module.

Lets first initiate our Bridge module with out any extra code. This will simply execute the UI() and server() methods, without any interaction.

bridge <- Bridge$new(inputPanel, table)

preview(bridge)

Shiny applications not supported in static R Markdown documents

To make the inputPanel and table modules interact, we have to provide a function that makes them interact. We specify the function as a regular shiny server() function. This function is executed with the server() methods of the modules.

bridgeFun <- function(input, output, session) {
  shiny::observeEvent(inputPanel$inputValues$inputSpecies, {
    table$data <- iris %>%
      dplyr::filter(.data$Species == inputPanel$inputValues$inputSpecies)
  })
}

bridge <- Bridge$new(inputPanel, table, bridgeFun = bridgeFun)

We can then use our Bridge module, like any other module.

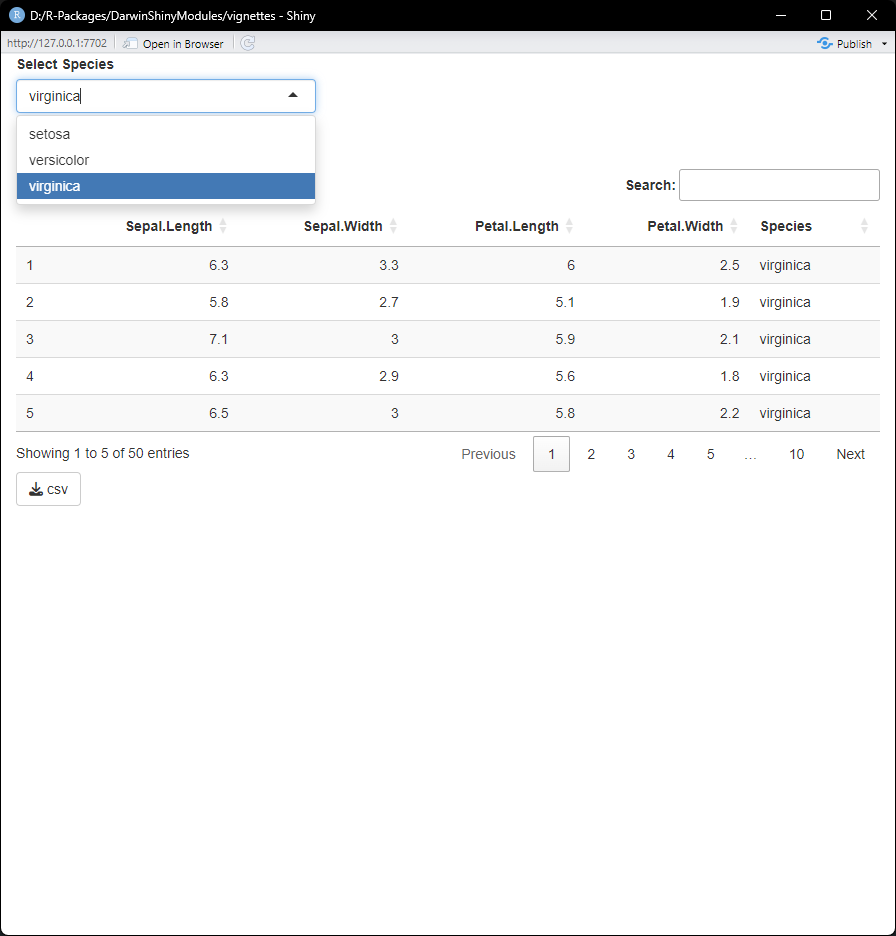

preview(bridge)

Shiny applications not supported in static R Markdown documents

Or use it in any bespoke shiny app.

library(shinydashboard)
#>
#> Attaching package: 'shinydashboard'
#> The following object is masked from 'package:graphics':
#>
#>     box
library(shiny)

ui <- dashboardPage(
  header = dashboardHeader(title = "My App"),
  sidebar = dashboardSidebar(
    sidebarMenu(
      menuItem(text = "Iris Data", tabName = "bridge")
    )
  ),
  body = dashboardBody(
    tabItems(
      tabItem(
        tabName = "bridge",
        bridge$UI()
      )
    )
  )
)

server <- function(input, output, session) {
  bridge$server(input, output, session)
}

shinyApp(ui, server)

Shiny applications not supported in static R Markdown documents
